Dimensionally interchangeable with Warman® SP / SP(R). Matec pumps are manufactured as independent aftermarket replacements and are not affiliated with Weir Minerals.
MVM (metal-lined): High-chrome wet end for abrasive sump and pit dewatering with coarse solids. MVR (rubber-lined): Elastomer wet end for corrosive sump duties and fine abrasive slurries.
The Matec MVM is a vertical cantilever slurry pump for abrasive sump, pit dewatering and tank transfer duties. It matches Warman® SP dimensions and needs no submerged bearings or seals in the liquid.
The Matec MVR is the rubber-lined version of the MVM, matching Warman® SP(R) dimensions. It is preferred for corrosive sump duties or fine abrasive slurries where elastomer wear life is superior.
Applications: Abrasive sump and pit dewatering, Tank and floor drainage in concentrators, Mill scale and coarse solids transfer, Tailings pond recirculation.
Applications: Corrosive sump and chemical drainage, Fine abrasive slurry pit dewatering, Flotation and leaching sumps, Acidic process water handling.
Features:
Features:
| Item | Matec MVM / MVR |
|---|---|
| Matec series | MVM / MVR |
| OEM equivalent | Warman® SP / SP(R) |
| Typical size / range | Vertical cantilever |
| Typical materials | High-chrome A05 / A07Natural rubber R55 / R26 |
| Common applications | Abrasive sump dewatering, tank transfer, coarse solids handlingCorrosive sump duties, fine abrasive slurries, acidic drainage |
| Component | Options |
|---|---|
| Impeller | A05 / A07 high-chromeRubber-lined impeller |
| Volute / casing liner | High-chrome bowl / casingRubber-lined bowl / casing |
| Shaft seal | Packing seal, dynamic expeller seal, mechanical seal (on request) |
| Bearing assembly | Oil-lubricated heavy-duty frame with radial and thrust bearings |
| Drive arrangement | Direct coupling, V-belt drive, variable-speed option |
Browse related Matec pump series for interchangeable alternatives to Warman® models.

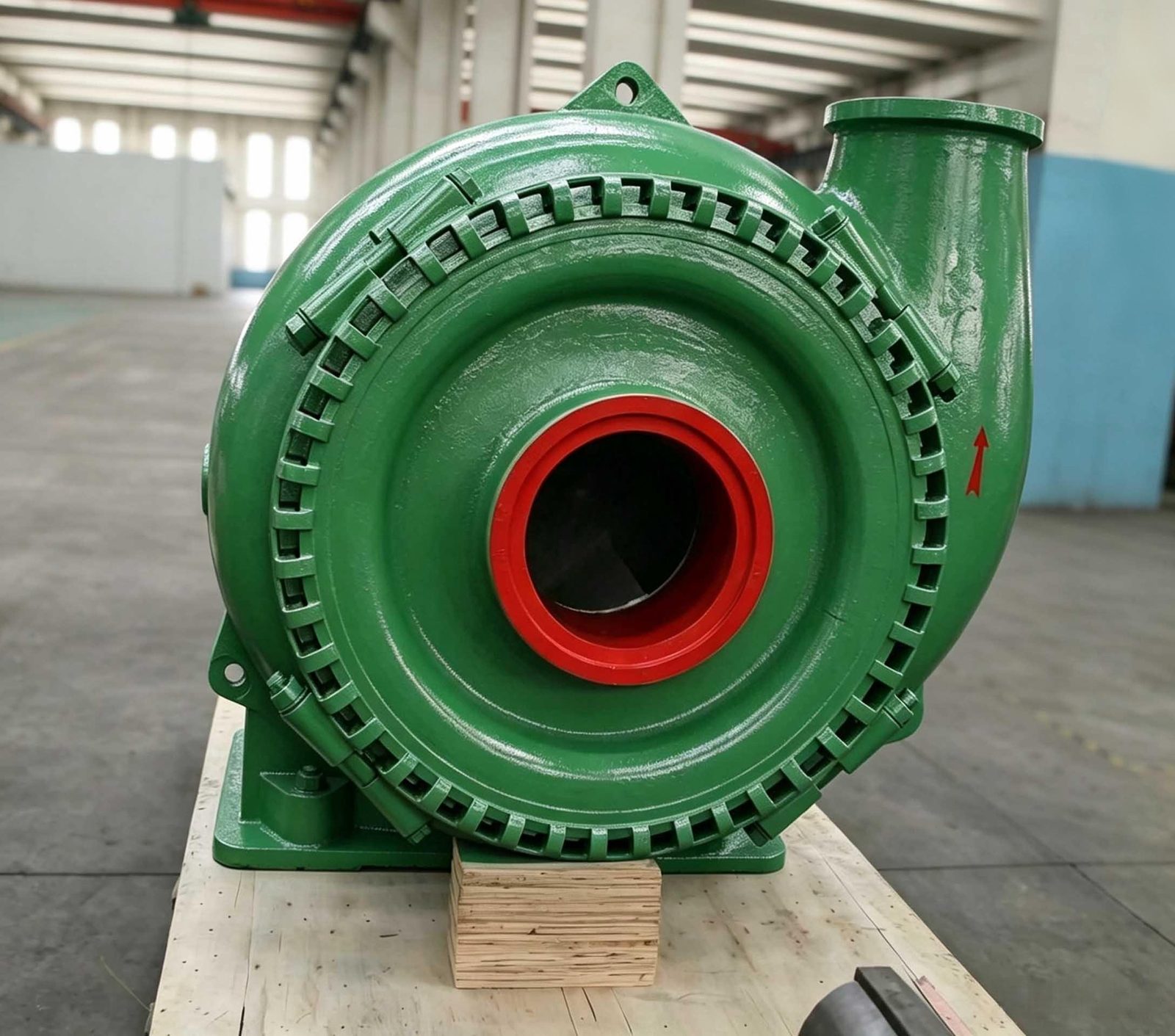

MG / MGH series details and specifications.
Series details →
MSP series details and specifications.
Series details →
MHM / MHR series details and specifications.
Series details →

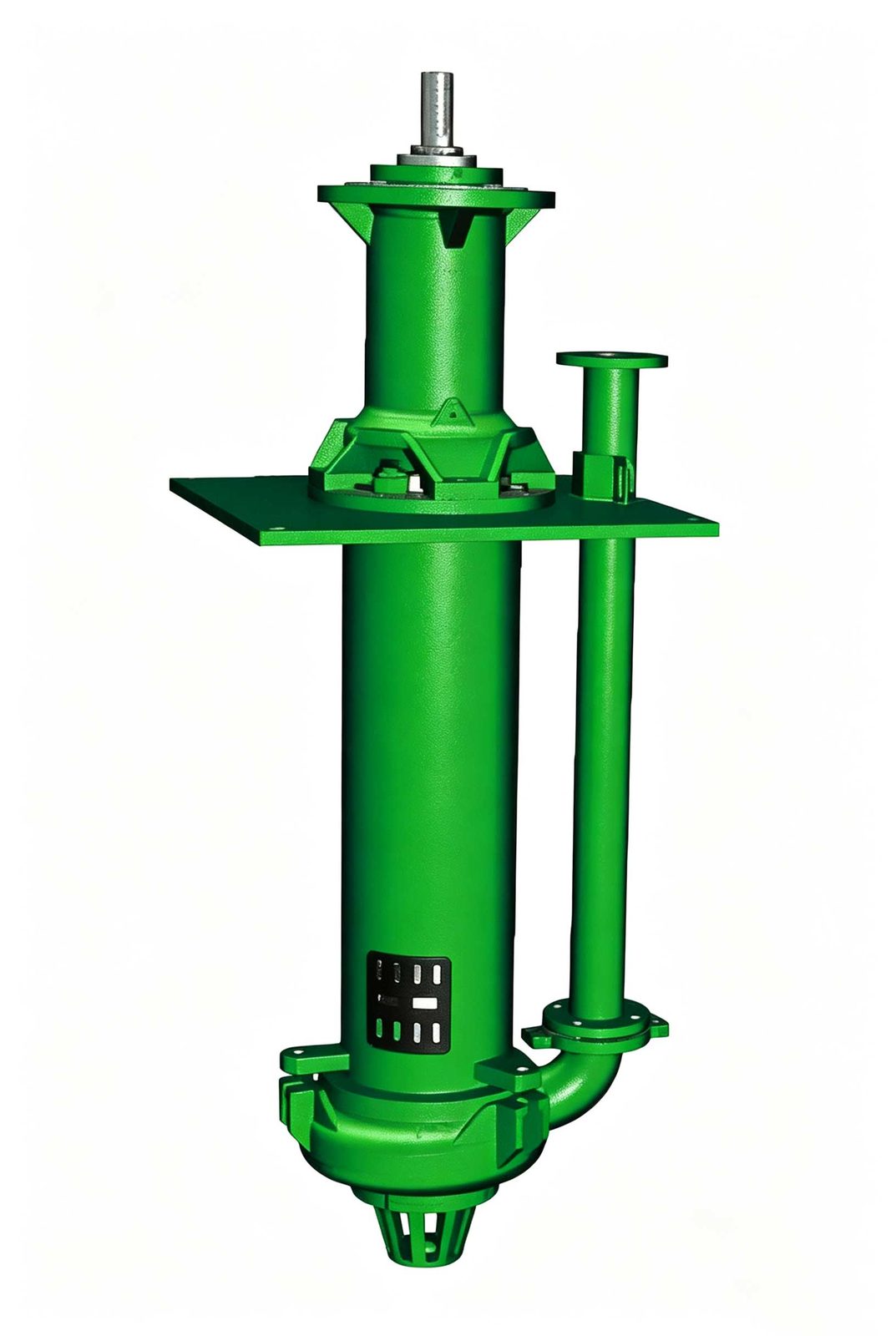

All Vertical Pumps series details and specifications.
Series details →Independent manufacturer note. Matec is an independent aftermarket manufacturer and is not affiliated with Weir Minerals or any OEM. Warman® is a registered trademark of Weir Minerals; references are for dimensional and material compatibility identification only.
Send us your duty point and current pump model — our engineers return a matched solution.
